C36

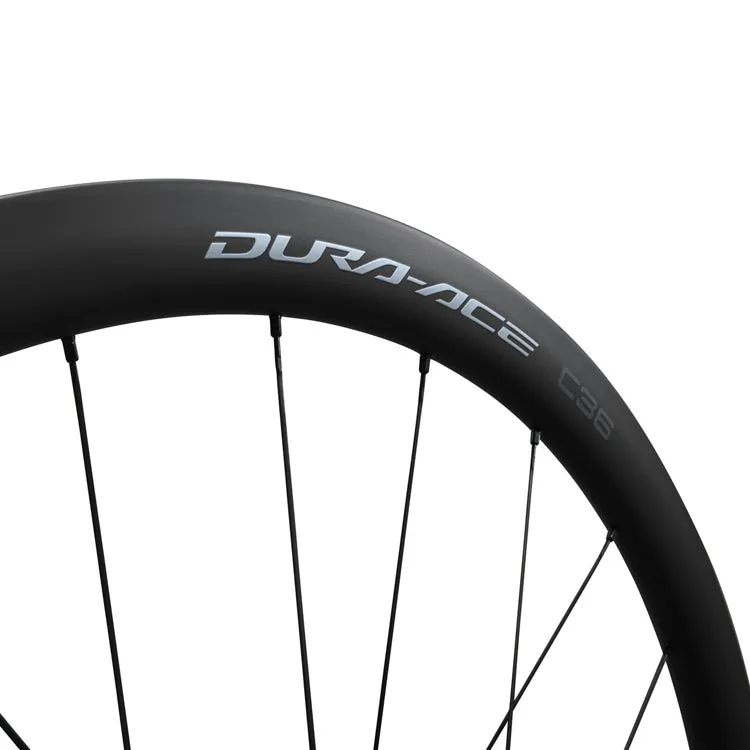

DURA-ACE R9270 C36 Tubeless Disc Wheelset WH-R9270-C36-TL

Tubeless Ready
With stunning acceleration, the new DURA-ACE R9270 C36 wheelset will change the way you experience climbs, corners, even stop lights.
This is because it isn't just how much a wheel weighs but where the weight is on the wheel that matters.
The all-new C36 design shaves mass at every opportunity but especially at the rim. The result is a lively wheelset that can transform your ride.
With both a lighter, wider all-carbon rim and a lighter hub, the new DURA-ACE C36 won't shy away from a day of climbing.

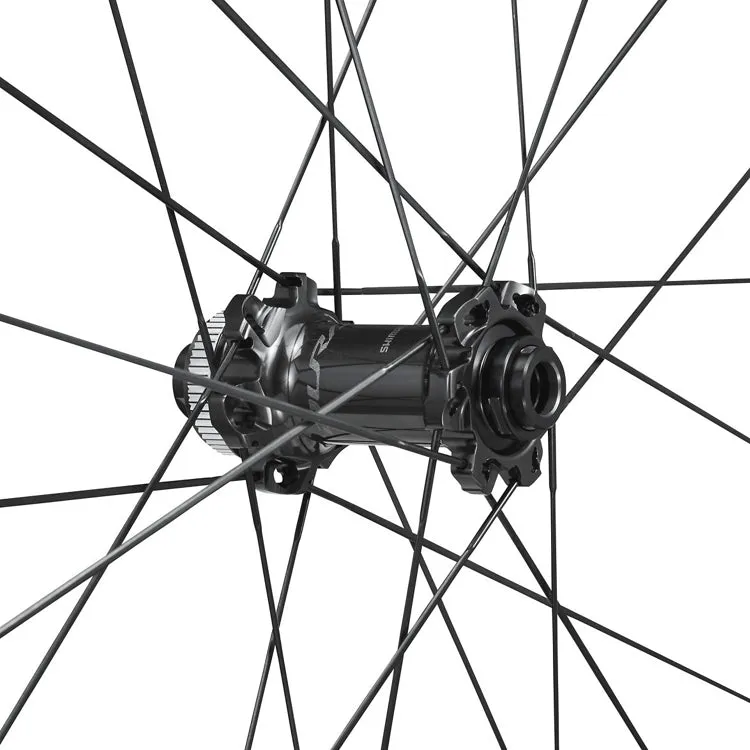

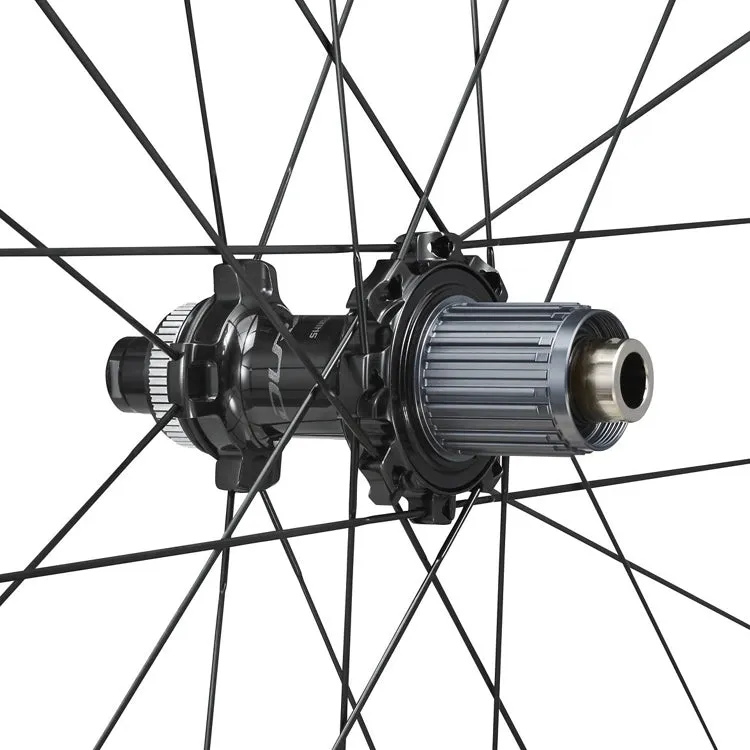

The new rim is 36 mm deep and still delivers good aerodynamic efficiency despite its gossamer weight. Meanwhile the hub features an alloy FREEHUB body and new engagement mechanism for increased rigidity.
Model: WH-R9270-C36-HR-TL
Series: DURA-ACE R9200 Series
Rim Depth: 36 mm height full carbon rim
Weight: 730g (Rear), 620g (Front)
Axle Fixing Method: 12 mm E-THRU O.L.D: 142mm (Rear), 100mm (Front)
Brake: Center Lock Disc Rotor
Recommended Tire Size: 25-622 to 32-622
Rim External width (mm) 28
Rim Internal width (mm) 21
Compatible only with Shimano road 12-speed cassette sprockets

C50

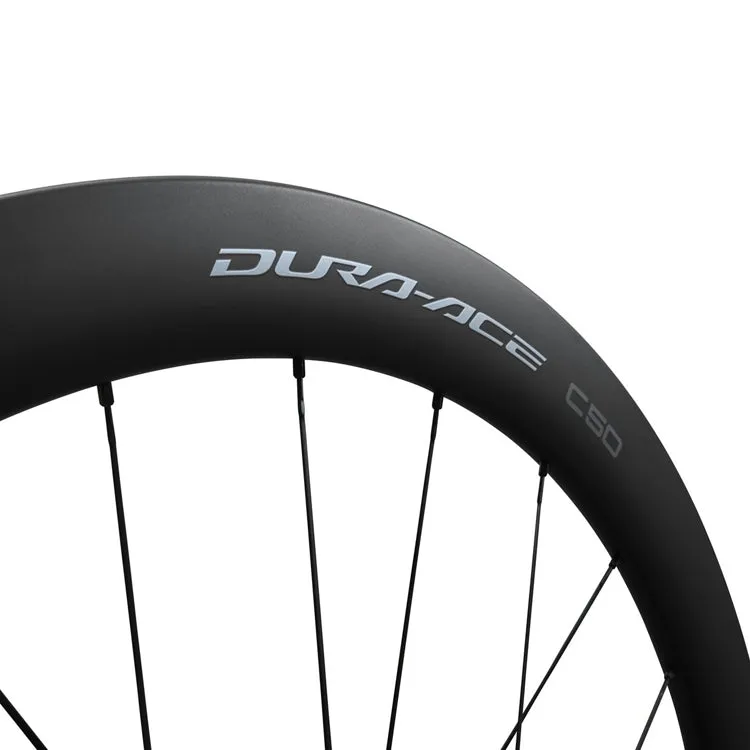

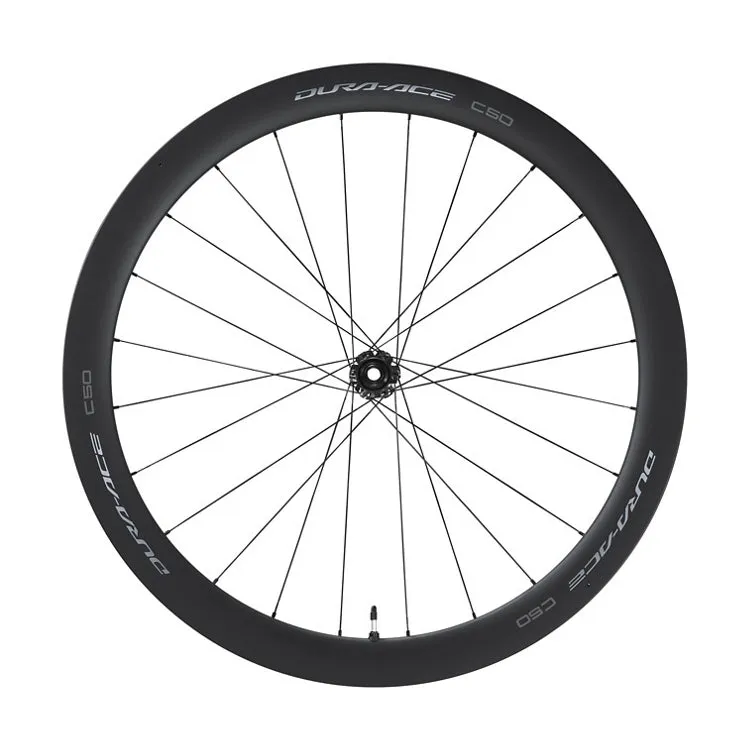

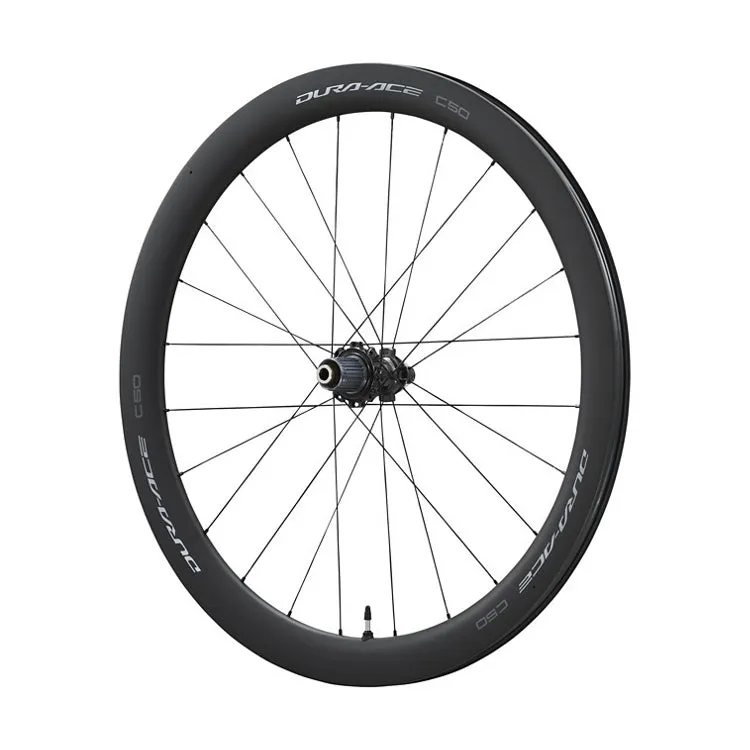

DURA-ACE R9270 C50 Tubeless Disc Wheelset WH-R9270-C50-TL

Tubeless Ready
The all-rounder of the new DURA-ACE wheel lineup, the C50 is both lighter than the previous C40 model and nearly as aerodynamic as the previous C60.
It's a wheelset at home in a wide range of conditions.
From time trials to criteriums, on rolling terrain or attempting a personal best, the new C50 is the ideal wheel for spirited road riding.
The perfect blend of low weight and aerodynamic performance, the all-new DURA-ACE C50 features an updated all-carbon tubeless rim and new hub design that drops weight while enhancing rigidity.
Model: WH-R9270-C50-HR-TL
Series: DURA-ACE R9200 Series

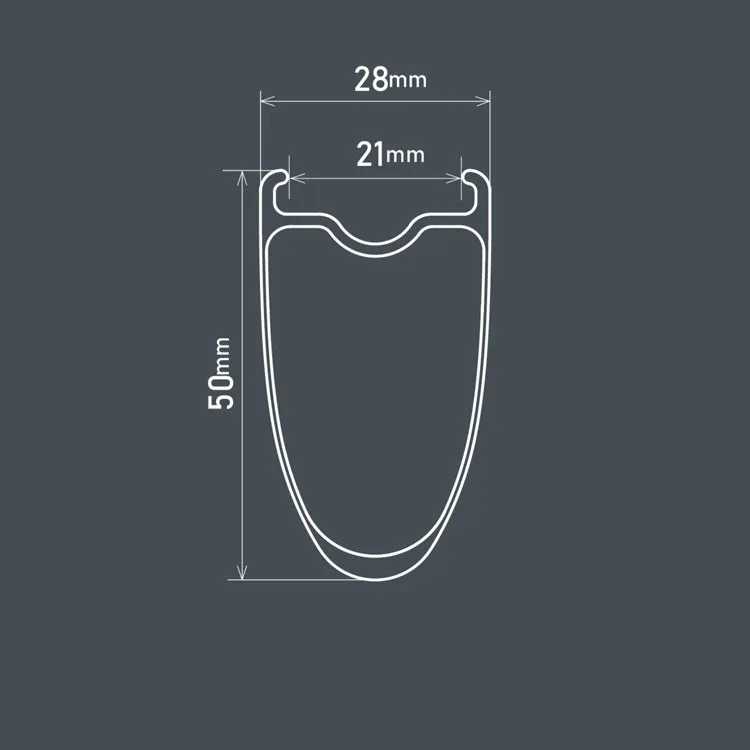

Rim Depth: 50 mm height full carbon rim
Weight: 787g (Rear), 674g (Front)
Axle Fixing Method: 12 mm E-THRU O.L.D: 142mm (Rear), 100mm (Front)
Brake: Center Lock Disc Rotor
Recommended Tire Size: 25-622 to 32-622
Rim External width (mm) 28
Rim Internal width (mm) 21
Compatible only with Shimano road 12-speed cassette sprockets

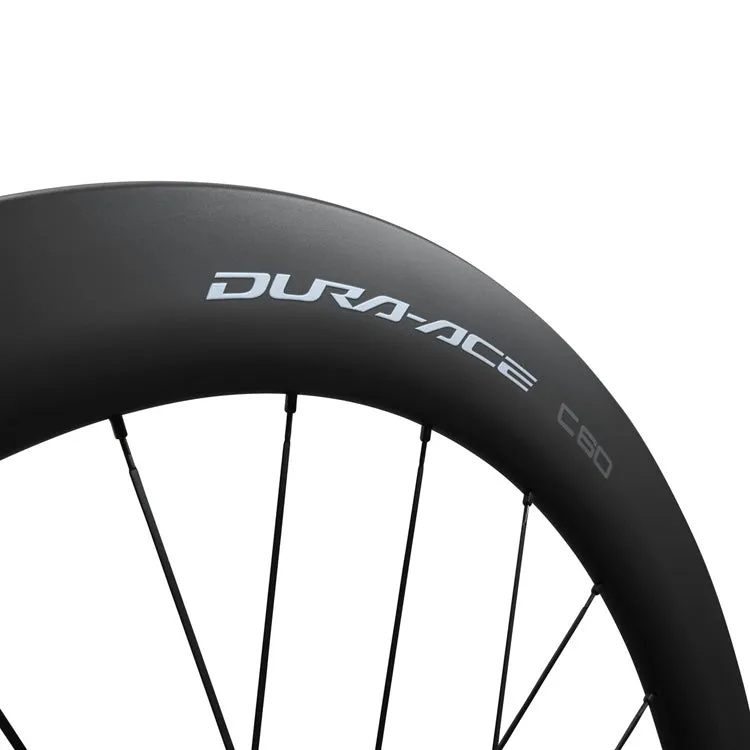

DURA-ACE R9200 C60 Tubeless Disc Wheelset WH-R9270-C60-HR-TL

Tubeless Ready
Perfect for flatter courses and time trials, the DURA-ACE C60 prioritizes aerodynamic efficiency and lateral rigidity.
The new hub design, stiffer spokes, and deep-section rim are designed specifically to allow you to push harder in corners and ensure that every bit of your effort is translated into forward motion.
Like the entire DURA-ACE wheel family, the new C60 started with a blank slate.
Different from the C36 and C50, the C60 has a specific front hub design using Shimano's OPTBAL 2:1 spoke pattern to enhance lateral rigidity.
The C60 also receives stiffer spokes, 1.8 mm instead of 1.5 mm.
Tested by our professional athletes, this focus on the lateral rigidity of C60 allows you to push harder in corners and when maneuvering at higher speeds.
The new wind-tunnel tested, deep section rims feature a faster, more stable cross-section that time trialists, triathletes, and sprinters alike will enjoy.
Model: WH-R9270-C60-HR-TL
Series: DURA-ACE R9200 Series
Rim Depth: 60 mm height full carbon rim
Weight: 858g (Rear), 751g (Front)
Axle Fixing Method: 12 mm E-THRU O.L.D: 142mm (Rear), 100mm (Front)
Brake: Center Lock Disc Rotor
Recommended Tire Size: 25-622 to 32-622
Rim External width (mm) 28
Rim Internal width (mm) 21
Compatible only with Shimano road 12-speed cassette sprockets
